此篇是apitable系列文章的第2篇，如何实现从本地的docker-compose部署到k8s集群使用deployment部署
附: apitable代码地址
背景
apitable提供了makefile实现了本地环境部署，但是我们的目标是落地测试环境和生产环境。
为了实现可移植性和可扩展性，刚好我们有一个k8s集群，所以决定在k8s上进行部署
过程
Quick start里本地启动介绍了2步，make dataenv以及make run，就可以本地启动了。那么makefile会有一些比较复杂的逻辑。
其中make dataenv是使用docker-compose启动了一堆的依赖组件，MySQL、Redis、RabbitMQ、Minio是通过dataenv启动的。

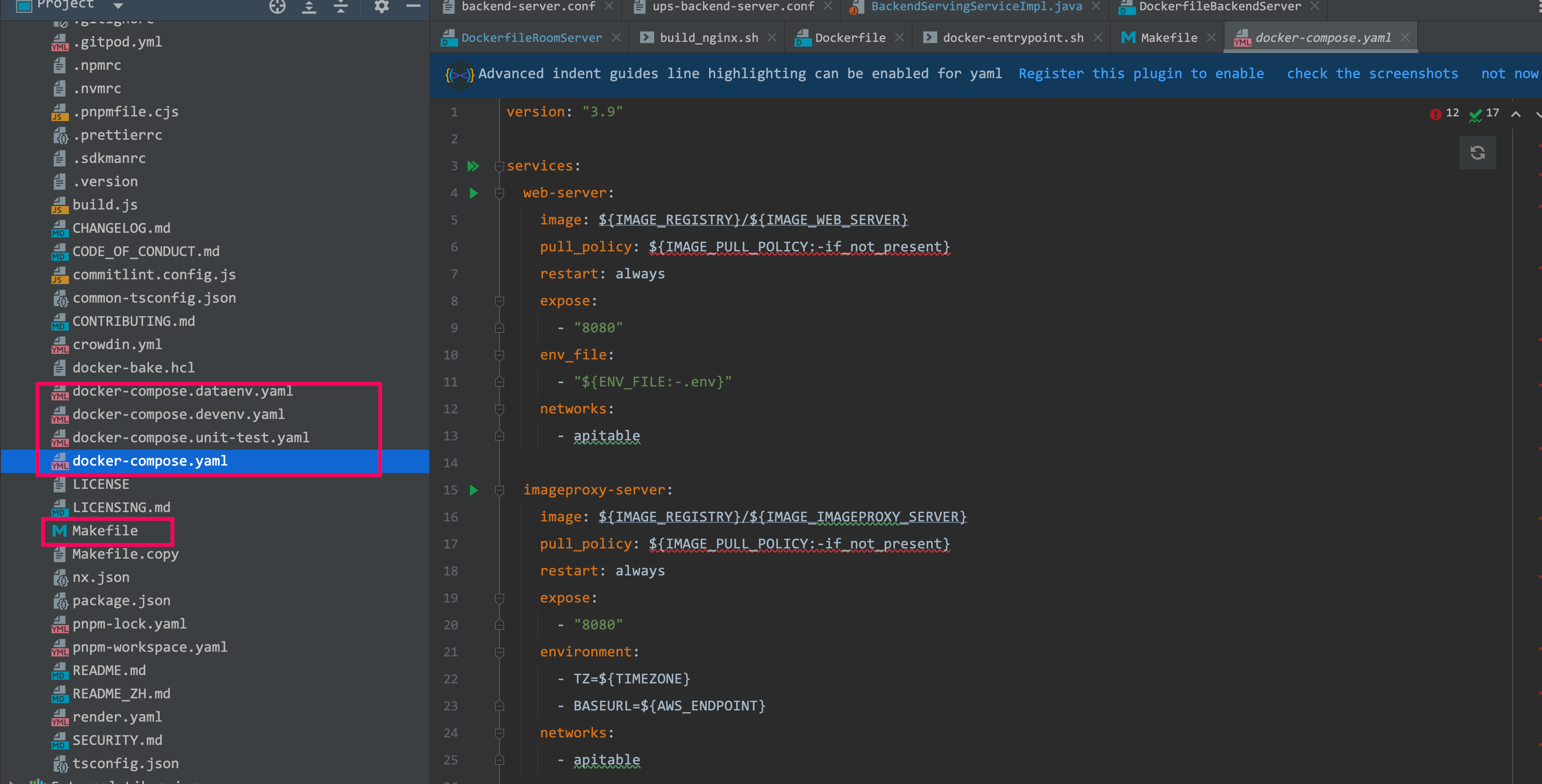

那么由于它这个makefile比较复杂，docker-compose文件也比较多，makefile最终执行完启动, 环境变量隐藏在里面启动了
那么在这种情况下怎么做转换呢
生成docker-compose预览
在询问GPT之后，基于make dataenv的执行过程，给了我如下的一个命令

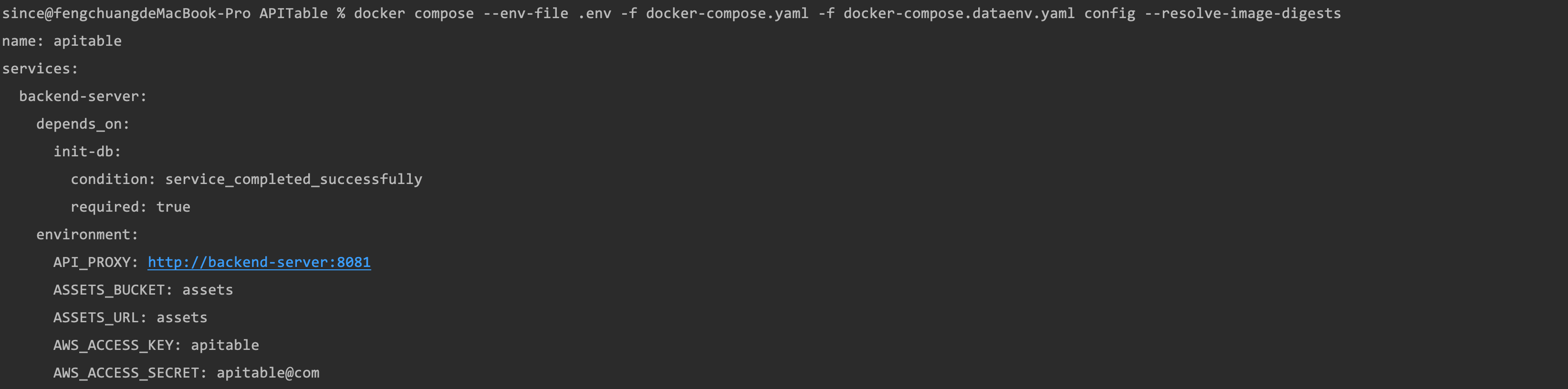

docker compose --env-file .env -f docker-compose.yaml -f docker-compose.dataenv.yaml config --resolve-image-digests
执行之后可以看到在控制台生成了一份填充好环境变量的yaml文件
yaml详细内容如下
name: apitable
services:
backend-server:
depends_on:
init-db:
condition: service_completed_successfully
required: true
environment:
API_PROXY: http://backend-server:8081
ASSETS_BUCKET: assets
ASSETS_URL: assets
AWS_ACCESS_KEY: apitable
AWS_ACCESS_SECRET: apitable@com
AWS_ENDPOINT: http://minio:9000
AWS_REGION: us-east-1
BACKEND_BASE_URL: http://backend-server:8081/api/v1/
BACKEND_INFO_URL: http://backend-server:8081/api/v1/client/info
CALLBACK_DOMAIN: ""
CORS_ORIGINS: '*'
DATA_PATH: .
DATABASE_TABLE_PREFIX: apitable_
DATABUS_SERVER_BASE_URL: http://databus-server:8625
DB_HOST: mysql
DB_NAME: apitable
DB_PASSWORD: apitable@com
DB_PORT: "3306"
DB_USERNAME: root
DEFAULT_TIME_ZONE: Asia/Singapore
ENV: apitable
HUAWEICLOUD_OBS_ACCESS_KEY: apitable
HUAWEICLOUD_OBS_ENDPOINT: obs.cn-south-1.myhuaweicloud.com
HUAWEICLOUD_OBS_SECRET_KEY: apitable@com
IMAGE_BACKEND_SERVER: apitable/backend-server:latest
IMAGE_DATABUS_SERVER: apitable/databus-server:latest
IMAGE_GATEWAY: apitable/openresty:latest
IMAGE_IMAGEPROXY_SERVER: apitable/imageproxy-server:latest
IMAGE_INIT_APPDATA: apitable/init-appdata:latest
IMAGE_INIT_DB: apitable/init-db:latest
IMAGE_MINIO: minio/minio:RELEASE.2023-01-25T00-19-54Z
IMAGE_MYSQL: mysql:8.0.32
IMAGE_PULL_POLICY: always
IMAGE_RABBITMQ: rabbitmq:3.11.9-management
IMAGE_REDIS: redis:7.0.8
IMAGE_REGISTRY: docker.io
IMAGE_ROOM_SERVER: apitable/room-server:latest
IMAGE_WEB_SERVER: apitable/web-server:latest
MAIL_ENABLED: "false"
MAIL_FROM: ""
MAIL_HOST: ""
MAIL_PASSWORD: ""
MAIL_PORT: ""
MAIL_SSL_ENABLE: "true"
MAIL_TYPE: smtp
MAIL_USERNAME: ""
MINIO_ACCESS_KEY: apitable
MINIO_SECRET_KEY: apitable@com
MYSQL_DATABASE: apitable
MYSQL_HOST: mysql
MYSQL_PASSWORD: apitable@com
MYSQL_PORT: "3306"
MYSQL_ROOT_PASSWORD: apitable@com
MYSQL_USERNAME: root
NEST_GRPC_ADDRESS: static://room-server:3334
NGINX_HTTP_PORT: "80"
NGINX_HTTPS_PORT: "443"
OSS_BUCKET_NAME: assets
OSS_CACHE_TYPE: minio
OSS_CLIENT_TYPE: aws
OSS_ENABLED: "true"
OSS_HOST: assets
OSS_TYPE: QNY1
PUBLIC_URL: ""
RABBITMQ_HOST: rabbitmq
RABBITMQ_PASSWORD: apitable@com
RABBITMQ_PORT: "5672"
RABBITMQ_USERNAME: apitable
RABBITMQ_VHOST: /
REDIS_DB: "0"
REDIS_HOST: redis
REDIS_PASSWORD: apitable@com
REDIS_PORT: "6379"
ROOM_GRPC_URL: room-server:3334
SERVER_DOMAIN: ""
SKIP_REGISTER_VALIDATE: "true"
SMS_ENABLED: "false"
SOCKET_DOMAIN: http://room-server:3333/socket
SOCKET_GRPC_URL: room-server:3007
SOCKET_RECONNECTION_ATTEMPTS: "10"
SOCKET_RECONNECTION_DELAY: "500"
SOCKET_TIMEOUT: "5000"
SOCKET_URL: http://room-server:3002
TEMPLATE_PATH: ./static/web_build/index.html
TEMPLATE_SPACE: spcNTxlv8Drra
TIMEZONE: Asia/Singapore
TZ: Asia/Singapore
USE_CUSTOM_PUBLIC_FILES: "true"
USE_NATIVE_MODULE: "0"
expose:
- "8081"
healthcheck:
test:
- CMD-SHELL
- curl -sS 'http://localhost:8081' || exit 1
timeout: 5s
interval: 5s
retries: 60
start_period: 30s
image: docker.io/apitable/backend-server:latest@sha256:8f5ba8f8bdee76c7981d92e8e9309403e8312c0795e7cac71cea2f8763f15bee
networks:
apitable: null
pull_policy: always
restart: always
databus-server:
depends_on:
mysql:
condition: service_healthy
required: true
environment:
API_PROXY: http://backend-server:8081
ASSETS_BUCKET: assets
ASSETS_URL: assets
AWS_ACCESS_KEY: apitable
AWS_ACCESS_SECRET: apitable@com
AWS_ENDPOINT: http://minio:9000
AWS_REGION: us-east-1
BACKEND_BASE_URL: http://backend-server:8081/api/v1/
BACKEND_INFO_URL: http://backend-server:8081/api/v1/client/info
CALLBACK_DOMAIN: ""
CORS_ORIGINS: '*'
DATA_PATH: .
DATABASE_TABLE_PREFIX: apitable_
DATABUS_SERVER_BASE_URL: http://databus-server:8625
DB_HOST: mysql
DB_NAME: apitable
DB_PASSWORD: apitable@com
DB_PORT: "3306"
DB_USERNAME: root
ENV: apitable
HUAWEICLOUD_OBS_ACCESS_KEY: apitable
HUAWEICLOUD_OBS_ENDPOINT: obs.cn-south-1.myhuaweicloud.com
HUAWEICLOUD_OBS_SECRET_KEY: apitable@com
IMAGE_BACKEND_SERVER: apitable/backend-server:latest
IMAGE_DATABUS_SERVER: apitable/databus-server:latest
IMAGE_GATEWAY: apitable/openresty:latest
IMAGE_IMAGEPROXY_SERVER: apitable/imageproxy-server:latest
IMAGE_INIT_APPDATA: apitable/init-appdata:latest
IMAGE_INIT_DB: apitable/init-db:latest
IMAGE_MINIO: minio/minio:RELEASE.2023-01-25T00-19-54Z
IMAGE_MYSQL: mysql:8.0.32
IMAGE_PULL_POLICY: always
IMAGE_RABBITMQ: rabbitmq:3.11.9-management
IMAGE_REDIS: redis:7.0.8
IMAGE_REGISTRY: docker.io
IMAGE_ROOM_SERVER: apitable/room-server:latest
IMAGE_WEB_SERVER: apitable/web-server:latest
MAIL_ENABLED: "false"
MAIL_FROM: ""
MAIL_HOST: ""
MAIL_PASSWORD: ""
MAIL_PORT: ""
MAIL_SSL_ENABLE: "true"
MAIL_TYPE: smtp
MAIL_USERNAME: ""
MINIO_ACCESS_KEY: apitable
MINIO_SECRET_KEY: apitable@com
MYSQL_DATABASE: apitable
MYSQL_HOST: mysql
MYSQL_PASSWORD: apitable@com
MYSQL_PORT: "3306"
MYSQL_ROOT_PASSWORD: apitable@com
MYSQL_USERNAME: root
NEST_GRPC_ADDRESS: static://room-server:3334
NGINX_HTTP_PORT: "80"
NGINX_HTTPS_PORT: "443"
OSS_BUCKET_NAME: assets
OSS_CACHE_TYPE: minio
OSS_CLIENT_TYPE: aws
OSS_ENABLED: "true"
OSS_HOST: assets
OSS_TYPE: QNY1
PUBLIC_URL: ""
RABBITMQ_HOST: rabbitmq
RABBITMQ_PASSWORD: apitable@com
RABBITMQ_PORT: "5672"
RABBITMQ_USERNAME: apitable
RABBITMQ_VHOST: /
REDIS_DB: "0"
REDIS_HOST: redis
REDIS_PASSWORD: apitable@com
REDIS_PORT: "6379"
ROOM_GRPC_URL: room-server:3334
SERVER_DOMAIN: ""
SKIP_REGISTER_VALIDATE: "true"
SMS_ENABLED: "false"
SOCKET_DOMAIN: http://room-server:3333/socket
SOCKET_GRPC_URL: room-server:3007
SOCKET_RECONNECTION_ATTEMPTS: "10"
SOCKET_RECONNECTION_DELAY: "500"
SOCKET_TIMEOUT: "5000"
SOCKET_URL: http://room-server:3002
TEMPLATE_PATH: ./static/web_build/index.html
TEMPLATE_SPACE: spcNTxlv8Drra
TIMEZONE: Asia/Singapore
TZ: Asia/Singapore
USE_CUSTOM_PUBLIC_FILES: "true"
USE_NATIVE_MODULE: "0"
expose:
- "8625"
image: docker.io/apitable/databus-server:latest@sha256:462fa8bea11df94642b80a58d683aaf9995d79061588843a9d6b7ee66a421600
networks:
apitable: null
ports:
- mode: ingress
target: 8625
published: "8625"
protocol: tcp
pull_policy: always
restart: always
gateway:
depends_on:
backend-server:
condition: service_healthy
required: true
imageproxy-server:
condition: service_started
required: true
init-appdata:
condition: service_completed_successfully
required: true
room-server:
condition: service_started
required: true
web-server:
condition: service_started
required: true
environment:
TZ: Asia/Singapore
image: docker.io/apitable/openresty:latest@sha256:fea46da296a1f156cebf9d26e9b40c781690479fb7629dafb5f1411494b669a8
networks:
apitable: null
ports:
- mode: ingress
target: 80
published: "80"
protocol: tcp
- mode: ingress
target: 443
published: "443"
protocol: tcp
pull_policy: always
restart: always
imageproxy-server:
environment:
BASEURL: http://minio:9000
TZ: Asia/Singapore
expose:
- "8080"
image: docker.io/apitable/imageproxy-server:latest@sha256:09ce6fc6817c99247e40cfb52489f217481a867b45d308d9525e13d38aa1e340
networks:
apitable: null
pull_policy: always
restart: always
init-appdata:
depends_on:
init-db:
condition: service_completed_successfully
required: true
mysql:
condition: service_healthy
required: true
environment:
API_PROXY: http://backend-server:8081
ASSETS_BUCKET: assets
ASSETS_URL: assets
AWS_ACCESS_KEY: apitable
AWS_ACCESS_SECRET: apitable@com
AWS_ENDPOINT: http://minio:9000
AWS_REGION: us-east-1
BACKEND_BASE_URL: http://backend-server:8081/api/v1/
BACKEND_INFO_URL: http://backend-server:8081/api/v1/client/info
CALLBACK_DOMAIN: ""
CORS_ORIGINS: '*'
DATA_PATH: .
DATABASE_TABLE_PREFIX: apitable_
DATABUS_SERVER_BASE_URL: http://databus-server:8625
DB_HOST: mysql
DB_NAME: apitable
DB_PASSWORD: apitable@com
DB_PORT: "3306"
DB_USERNAME: root
ENV: apitable
HUAWEICLOUD_OBS_ACCESS_KEY: apitable
HUAWEICLOUD_OBS_ENDPOINT: obs.cn-south-1.myhuaweicloud.com
HUAWEICLOUD_OBS_SECRET_KEY: apitable@com
IMAGE_BACKEND_SERVER: apitable/backend-server:latest
IMAGE_DATABUS_SERVER: apitable/databus-server:latest
IMAGE_GATEWAY: apitable/openresty:latest
IMAGE_IMAGEPROXY_SERVER: apitable/imageproxy-server:latest
IMAGE_INIT_APPDATA: apitable/init-appdata:latest
IMAGE_INIT_DB: apitable/init-db:latest
IMAGE_MINIO: minio/minio:RELEASE.2023-01-25T00-19-54Z
IMAGE_MYSQL: mysql:8.0.32
IMAGE_PULL_POLICY: always
IMAGE_RABBITMQ: rabbitmq:3.11.9-management
IMAGE_REDIS: redis:7.0.8
IMAGE_REGISTRY: docker.io
IMAGE_ROOM_SERVER: apitable/room-server:latest
IMAGE_WEB_SERVER: apitable/web-server:latest
MAIL_ENABLED: "false"
MAIL_FROM: ""
MAIL_HOST: ""
MAIL_PASSWORD: ""
MAIL_PORT: ""
MAIL_SSL_ENABLE: "true"
MAIL_TYPE: smtp
MAIL_USERNAME: ""
MINIO_ACCESS_KEY: apitable
MINIO_SECRET_KEY: apitable@com
MYSQL_DATABASE: apitable
MYSQL_HOST: mysql
MYSQL_PASSWORD: apitable@com
MYSQL_PORT: "3306"
MYSQL_ROOT_PASSWORD: apitable@com
MYSQL_USERNAME: root
NEST_GRPC_ADDRESS: static://room-server:3334
NGINX_HTTP_PORT: "80"
NGINX_HTTPS_PORT: "443"
OSS_BUCKET_NAME: assets
OSS_CACHE_TYPE: minio
OSS_CLIENT_TYPE: aws
OSS_ENABLED: "true"
OSS_HOST: assets
OSS_TYPE: QNY1
PUBLIC_URL: ""
RABBITMQ_HOST: rabbitmq
RABBITMQ_PASSWORD: apitable@com
RABBITMQ_PORT: "5672"
RABBITMQ_USERNAME: apitable
RABBITMQ_VHOST: /
REDIS_DB: "0"
REDIS_HOST: redis
REDIS_PASSWORD: apitable@com
REDIS_PORT: "6379"
ROOM_GRPC_URL: room-server:3334
SERVER_DOMAIN: ""
SKIP_REGISTER_VALIDATE: "true"
SMS_ENABLED: "false"
SOCKET_DOMAIN: http://room-server:3333/socket
SOCKET_GRPC_URL: room-server:3007
SOCKET_RECONNECTION_ATTEMPTS: "10"
SOCKET_RECONNECTION_DELAY: "500"
SOCKET_TIMEOUT: "5000"
SOCKET_URL: http://room-server:3002
TEMPLATE_PATH: ./static/web_build/index.html
TEMPLATE_SPACE: spcNTxlv8Drra
TIMEZONE: Asia/Singapore
USE_CUSTOM_PUBLIC_FILES: "true"
USE_NATIVE_MODULE: "0"
image: docker.io/apitable/init-appdata:latest@sha256:4fa2ed5d1a5a3e2f7bd449352ec3054747127aabe4f91c62fc13f4660b25558b
networks:
apitable: null
pull_policy: always
init-db:
depends_on:
mysql:
condition: service_healthy
required: true
environment:
ACTION: update
DATABASE_TABLE_PREFIX: apitable_
DB_HOST: mysql
DB_NAME: apitable
DB_PASSWORD: apitable@com
DB_PORT: "3306"
DB_USERNAME: root
TZ: Asia/Singapore
image: docker.io/apitable/init-db:latest@sha256:31cdae8220bdda327e773c2854ced625704203c043774b0992bb13dbb510ae6c
networks:
apitable: null
pull_policy: always
minio:
command:
- server
- --console-address
- :9001
- /data
container_name: minio
environment:
MINIO_ACCESS_KEY: apitable
MINIO_ROOT_PASSWORD: apitable@com
MINIO_ROOT_USER: apitable
MINIO_SECRET_KEY: apitable@com
TZ: Asia/Singapore
expose:
- "9000"
- "9001"
healthcheck:
test:
- CMD-SHELL
- curl -sS 'http://localhost:9000' || exit 1
timeout: 5s
interval: 5s
retries: 30
image: docker.io/minio/minio:RELEASE.2023-01-25T00-19-54Z@sha256:6a125ee7860f387d4b1d9aface8be01413e2a9f803508d23b5e9dd64b833e7a7
networks:
apitable: null
ports:
- mode: ingress
target: 9000
published: "9000"
protocol: tcp
- mode: ingress
target: 9001
published: "9001"
protocol: tcp
pull_policy: always
restart: always
volumes:
- type: bind
source: /Users/since/zto/APITable/.data/minio/data
target: /data
bind:
create_host_path: true
- type: bind
source: /Users/since/zto/APITable/.data/minio/config
target: /root/.minio
bind:
create_host_path: true
mysql:
command:
- --default-authentication-plugin=mysql_native_password
- --character-set-server=utf8mb4
- --collation-server=utf8mb4_general_ci
- --sql_mode=IGNORE_SPACE,NO_ENGINE_SUBSTITUTION
- --lower_case_table_names=2
container_name: mysql
environment:
MYSQL_DATABASE: apitable
MYSQL_ROOT_PASSWORD: apitable@com
TZ: Asia/Singapore
expose:
- "3306"
healthcheck:
test:
- CMD-SHELL
- mysql apitable -uroot -papitable@com -e 'SELECT 1;'
timeout: 5s
interval: 5s
retries: 60
start_period: 30s
image: docker.io/library/mysql:8.0.32@sha256:f496c25da703053a6e0717f1d52092205775304ea57535cc9fcaa6f35867800b
networks:
apitable: null
ports:
- mode: ingress
target: 3306
published: "3306"
protocol: tcp
pull_policy: always
restart: always
volumes:
- type: bind
source: /Users/since/zto/APITable/.data/mysql
target: /var/lib/mysql
bind:
create_host_path: true
rabbitmq:
container_name: rabbitmq
environment:
RABBITMQ_DEFAULT_PASS: apitable@com
RABBITMQ_DEFAULT_USER: apitable
expose:
- "5671"
- "5672"
- "15672"
image: docker.io/library/rabbitmq:3.11.9-management@sha256:742359d27f34c379585f46645a5b5a9a8e61877b7b3d8dc009b57701ab4b62c2
networks:
apitable: null
ports:
- mode: ingress
target: 5671
published: "5671"
protocol: tcp
- mode: ingress
target: 5672
published: "5672"
protocol: tcp
- mode: ingress
target: 15672
published: "15672"
protocol: tcp
pull_policy: always
restart: always
volumes:
- type: bind
source: /Users/since/zto/APITable/.data/rabbitmq
target: /var/lib/rabbitmq
bind:
create_host_path: true
redis:
command:
- redis-server
- --appendonly
- "yes"
- --requirepass
- apitable@com
container_name: redis
environment:
TZ: Asia/Singapore
expose:
- "6379"
image: docker.io/library/redis:7.0.8@sha256:6a59f1cbb8d28ac484176d52c473494859a512ddba3ea62a547258cf16c9b3ae
networks:
apitable: null
ports:
- mode: ingress
target: 6379
published: "6379"
protocol: tcp
pull_policy: always
restart: always
volumes:
- type: bind
source: /Users/since/zto/APITable/.data/redis
target: /data
bind:
create_host_path: true
room-server:
depends_on:
mysql:
condition: service_healthy
required: true
environment:
API_MAX_MODIFY_RECORD_COUNTS: "30"
API_PROXY: http://backend-server:8081
ASSETS_BUCKET: assets
ASSETS_URL: assets
AWS_ACCESS_KEY: apitable
AWS_ACCESS_SECRET: apitable@com
AWS_ENDPOINT: http://minio:9000
AWS_REGION: us-east-1
BACKEND_BASE_URL: http://backend-server:8081/api/v1/
BACKEND_INFO_URL: http://backend-server:8081/api/v1/client/info
CALLBACK_DOMAIN: ""
CORS_ORIGINS: '*'
DATA_PATH: .
DATABASE_TABLE_PREFIX: apitable_
DATABUS_SERVER_BASE_URL: http://databus-server:8625
DB_HOST: mysql
DB_NAME: apitable
DB_PASSWORD: apitable@com
DB_PORT: "3306"
DB_USERNAME: root
ENABLE_SOCKET: "true"
ENV: apitable
HUAWEICLOUD_OBS_ACCESS_KEY: apitable
HUAWEICLOUD_OBS_ENDPOINT: obs.cn-south-1.myhuaweicloud.com
HUAWEICLOUD_OBS_SECRET_KEY: apitable@com
IMAGE_BACKEND_SERVER: apitable/backend-server:latest
IMAGE_DATABUS_SERVER: apitable/databus-server:latest
IMAGE_GATEWAY: apitable/openresty:latest
IMAGE_IMAGEPROXY_SERVER: apitable/imageproxy-server:latest
IMAGE_INIT_APPDATA: apitable/init-appdata:latest
IMAGE_INIT_DB: apitable/init-db:latest
IMAGE_MINIO: minio/minio:RELEASE.2023-01-25T00-19-54Z
IMAGE_MYSQL: mysql:8.0.32
IMAGE_PULL_POLICY: always
IMAGE_RABBITMQ: rabbitmq:3.11.9-management
IMAGE_REDIS: redis:7.0.8
IMAGE_REGISTRY: docker.io
IMAGE_ROOM_SERVER: apitable/room-server:latest
IMAGE_WEB_SERVER: apitable/web-server:latest
INSTANCE_MAX_MEMORY: 4096M
MAIL_ENABLED: "false"
MAIL_FROM: ""
MAIL_HOST: ""
MAIL_PASSWORD: ""
MAIL_PORT: ""
MAIL_SSL_ENABLE: "true"
MAIL_TYPE: smtp
MAIL_USERNAME: ""
MINIO_ACCESS_KEY: apitable
MINIO_SECRET_KEY: apitable@com
MYSQL_DATABASE: apitable
MYSQL_HOST: mysql
MYSQL_PASSWORD: apitable@com
MYSQL_PORT: "3306"
MYSQL_ROOT_PASSWORD: apitable@com
MYSQL_USERNAME: root
NEST_GRPC_ADDRESS: static://room-server:3334
NGINX_HTTP_PORT: "80"
NGINX_HTTPS_PORT: "443"
NODE_ENV: apitable
NODE_OPTIONS: --max-old-space-size=2048 --max-http-header-size=80000
OSS_BUCKET_NAME: assets
OSS_CACHE_TYPE: minio
OSS_CLIENT_TYPE: aws
OSS_ENABLED: "true"
OSS_HOST: assets
OSS_TYPE: QNY1
PUBLIC_URL: ""
RABBITMQ_HOST: rabbitmq
RABBITMQ_PASSWORD: apitable@com
RABBITMQ_PORT: "5672"
RABBITMQ_USERNAME: apitable
RABBITMQ_VHOST: /
REDIS_DB: "0"
REDIS_HOST: redis
REDIS_PASSWORD: apitable@com
REDIS_PORT: "6379"
ROOM_GRPC_URL: room-server:3334
SERVER_DOMAIN: ""
SKIP_REGISTER_VALIDATE: "true"
SMS_ENABLED: "false"
SOCKET_DOMAIN: http://room-server:3333/socket
SOCKET_GRPC_URL: room-server:3007
SOCKET_RECONNECTION_ATTEMPTS: "10"
SOCKET_RECONNECTION_DELAY: "500"
SOCKET_TIMEOUT: "5000"
SOCKET_URL: http://room-server:3002
TEMPLATE_PATH: ./static/web_build/index.html
TEMPLATE_SPACE: spcNTxlv8Drra
TIMEZONE: Asia/Singapore
TZ: Asia/Singapore
USE_CUSTOM_PUBLIC_FILES: "true"
USE_NATIVE_MODULE: "0"
expose:
- "3333"
- "3334"
- "3001"
- "3002"
- "3006"
- "3005"
- "3007"
image: docker.io/apitable/room-server:latest@sha256:7fe50c091022eab7d8066e293c8c8543e064cb39f71e91fe5d5291acd2e85a72
networks:
apitable: null
pull_policy: always
restart: always
web-server:
environment:
API_PROXY: http://backend-server:8081
ASSETS_BUCKET: assets
ASSETS_URL: assets
AWS_ACCESS_KEY: apitable
AWS_ACCESS_SECRET: apitable@com
AWS_ENDPOINT: http://minio:9000
AWS_REGION: us-east-1
BACKEND_BASE_URL: http://backend-server:8081/api/v1/
BACKEND_INFO_URL: http://backend-server:8081/api/v1/client/info
CALLBACK_DOMAIN: ""
CORS_ORIGINS: '*'
DATA_PATH: .
DATABASE_TABLE_PREFIX: apitable_
DATABUS_SERVER_BASE_URL: http://databus-server:8625
DB_HOST: mysql
DB_NAME: apitable
DB_PASSWORD: apitable@com
DB_PORT: "3306"
DB_USERNAME: root
ENV: apitable
HUAWEICLOUD_OBS_ACCESS_KEY: apitable
HUAWEICLOUD_OBS_ENDPOINT: obs.cn-south-1.myhuaweicloud.com
HUAWEICLOUD_OBS_SECRET_KEY: apitable@com
IMAGE_BACKEND_SERVER: apitable/backend-server:latest
IMAGE_DATABUS_SERVER: apitable/databus-server:latest
IMAGE_GATEWAY: apitable/openresty:latest
IMAGE_IMAGEPROXY_SERVER: apitable/imageproxy-server:latest
IMAGE_INIT_APPDATA: apitable/init-appdata:latest
IMAGE_INIT_DB: apitable/init-db:latest
IMAGE_MINIO: minio/minio:RELEASE.2023-01-25T00-19-54Z
IMAGE_MYSQL: mysql:8.0.32
IMAGE_PULL_POLICY: always
IMAGE_RABBITMQ: rabbitmq:3.11.9-management
IMAGE_REDIS: redis:7.0.8
IMAGE_REGISTRY: docker.io
IMAGE_ROOM_SERVER: apitable/room-server:latest
IMAGE_WEB_SERVER: apitable/web-server:latest
MAIL_ENABLED: "false"
MAIL_FROM: ""
MAIL_HOST: ""
MAIL_PASSWORD: ""
MAIL_PORT: ""
MAIL_SSL_ENABLE: "true"
MAIL_TYPE: smtp
MAIL_USERNAME: ""
MINIO_ACCESS_KEY: apitable
MINIO_SECRET_KEY: apitable@com
MYSQL_DATABASE: apitable
MYSQL_HOST: mysql
MYSQL_PASSWORD: apitable@com
MYSQL_PORT: "3306"
MYSQL_ROOT_PASSWORD: apitable@com
MYSQL_USERNAME: root
NEST_GRPC_ADDRESS: static://room-server:3334
NGINX_HTTP_PORT: "80"
NGINX_HTTPS_PORT: "443"
OSS_BUCKET_NAME: assets
OSS_CACHE_TYPE: minio
OSS_CLIENT_TYPE: aws
OSS_ENABLED: "true"
OSS_HOST: assets
OSS_TYPE: QNY1
PUBLIC_URL: ""
RABBITMQ_HOST: rabbitmq
RABBITMQ_PASSWORD: apitable@com
RABBITMQ_PORT: "5672"
RABBITMQ_USERNAME: apitable
RABBITMQ_VHOST: /
REDIS_DB: "0"
REDIS_HOST: redis
REDIS_PASSWORD: apitable@com
REDIS_PORT: "6379"
ROOM_GRPC_URL: room-server:3334
SERVER_DOMAIN: ""
SKIP_REGISTER_VALIDATE: "true"
SMS_ENABLED: "false"
SOCKET_DOMAIN: http://room-server:3333/socket
SOCKET_GRPC_URL: room-server:3007
SOCKET_RECONNECTION_ATTEMPTS: "10"
SOCKET_RECONNECTION_DELAY: "500"
SOCKET_TIMEOUT: "5000"
SOCKET_URL: http://room-server:3002
TEMPLATE_PATH: ./static/web_build/index.html
TEMPLATE_SPACE: spcNTxlv8Drra
TIMEZONE: Asia/Singapore
USE_CUSTOM_PUBLIC_FILES: "true"
USE_NATIVE_MODULE: "0"
expose:
- "8080"
image: docker.io/apitable/web-server:latest@sha256:bc4c11eb1faec60f293c3392aa69e85f6fbc87817c15358917335053dcfade8f
networks:
apitable: null
pull_policy: always
restart: always
networks:
apitable:
name: apitable_default
driver: bridge
转换
那么有了yaml之后，就可以方便的执行转换了，因为我们已经拿到了启动各个pod需要的环境变量，虽然有些是冗余无效的配置，但是前
期我们的目标是能在k8s上部署，后续配置我们再优化

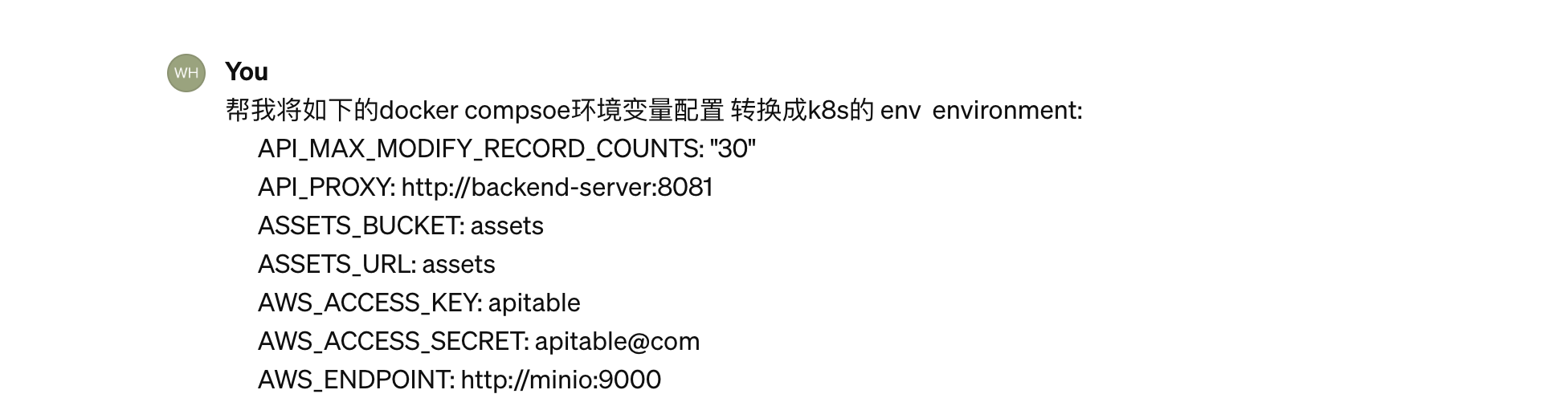

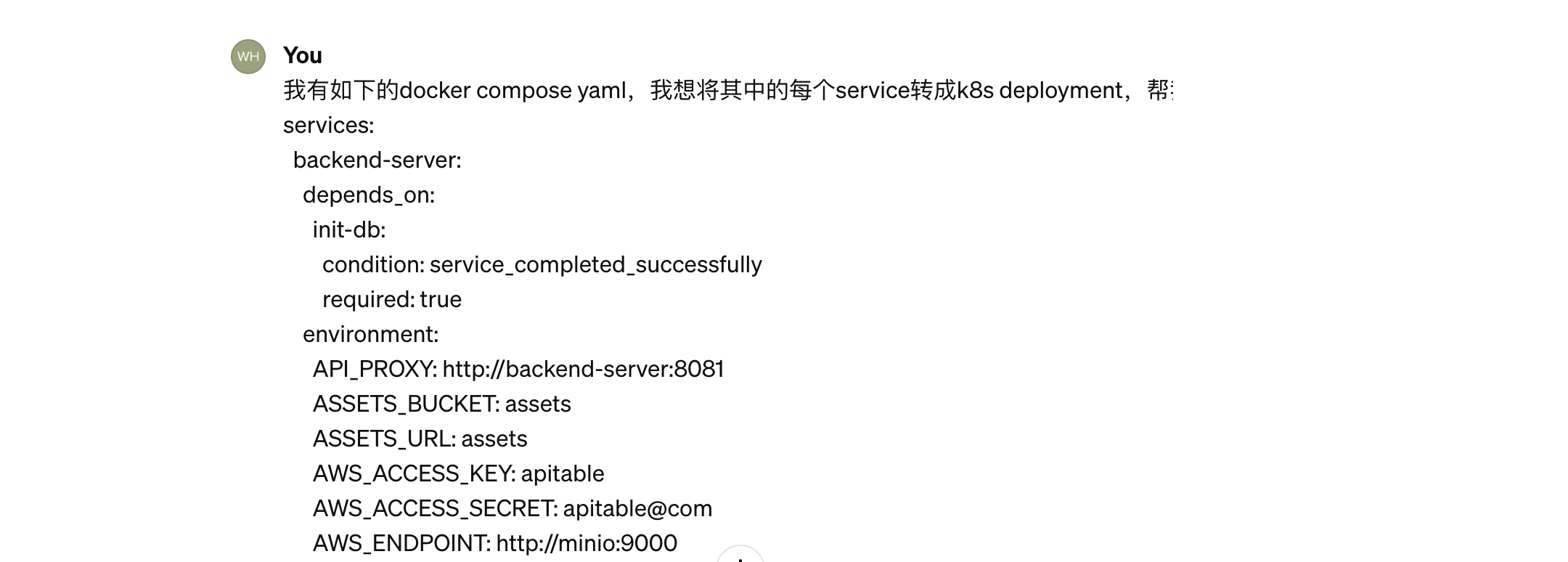

那么接下来把yaml发给GPT, GPT会生成一份简陋的配置，环境变量没贴完整

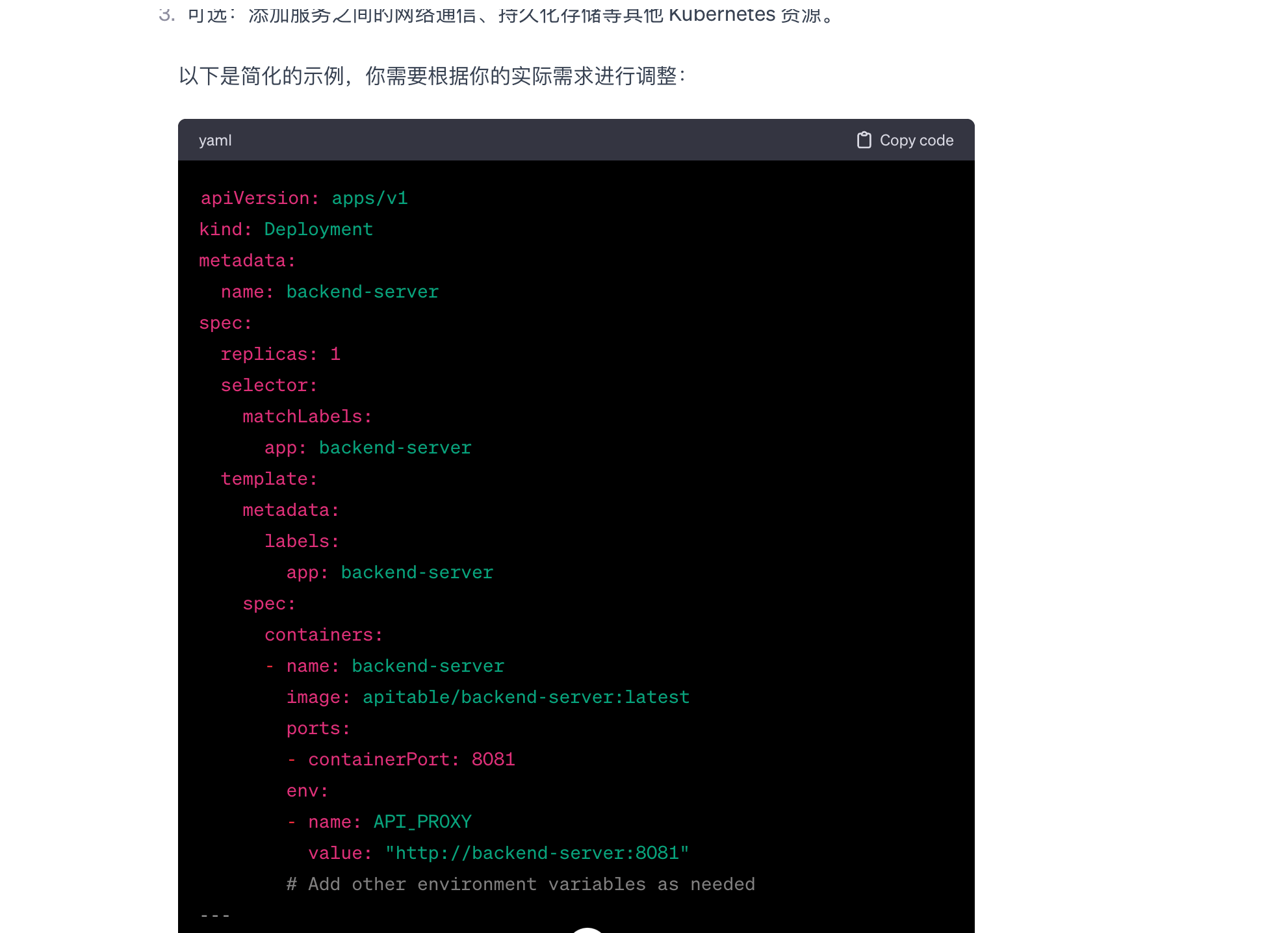

这里deployment的配置是残缺的

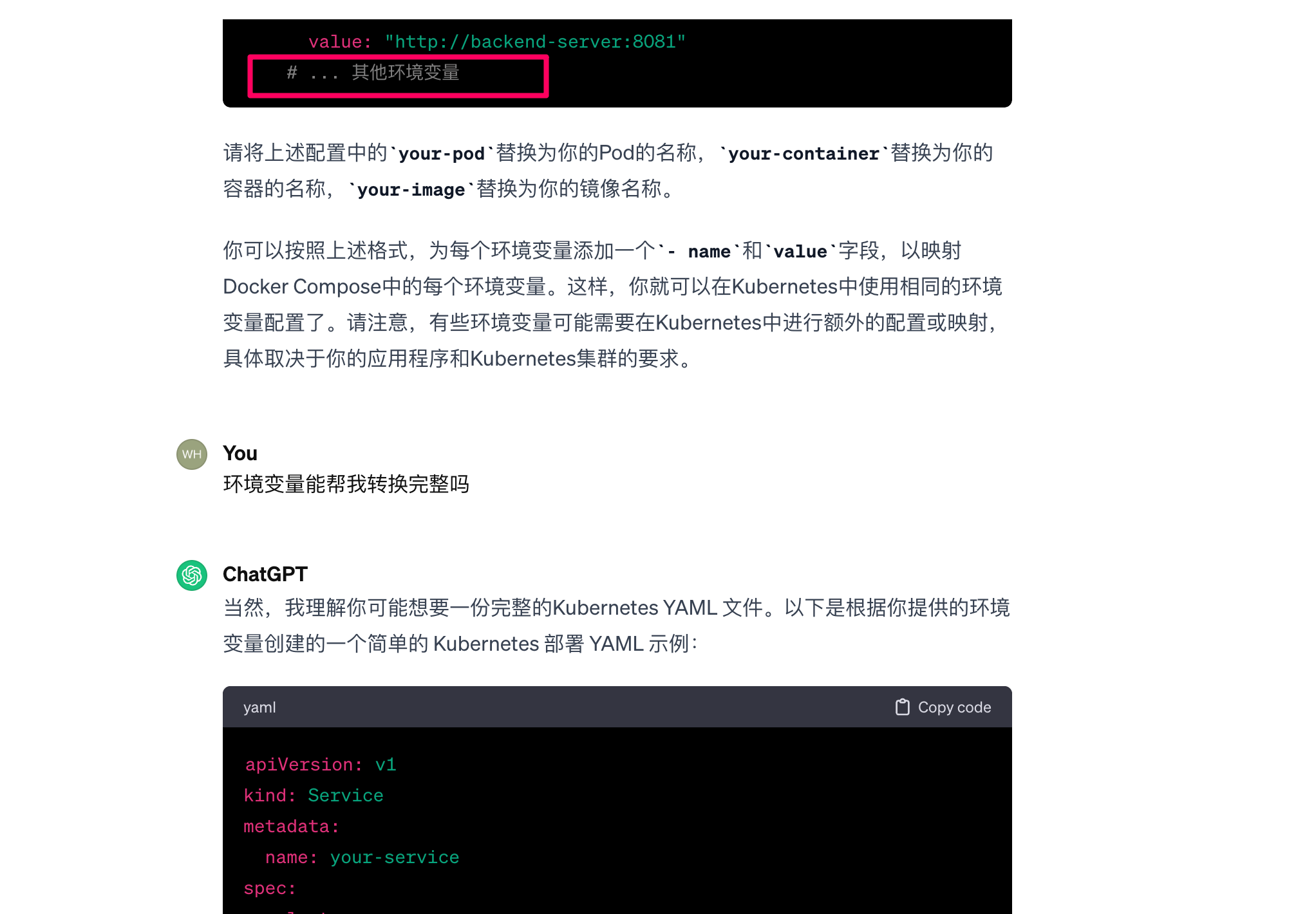

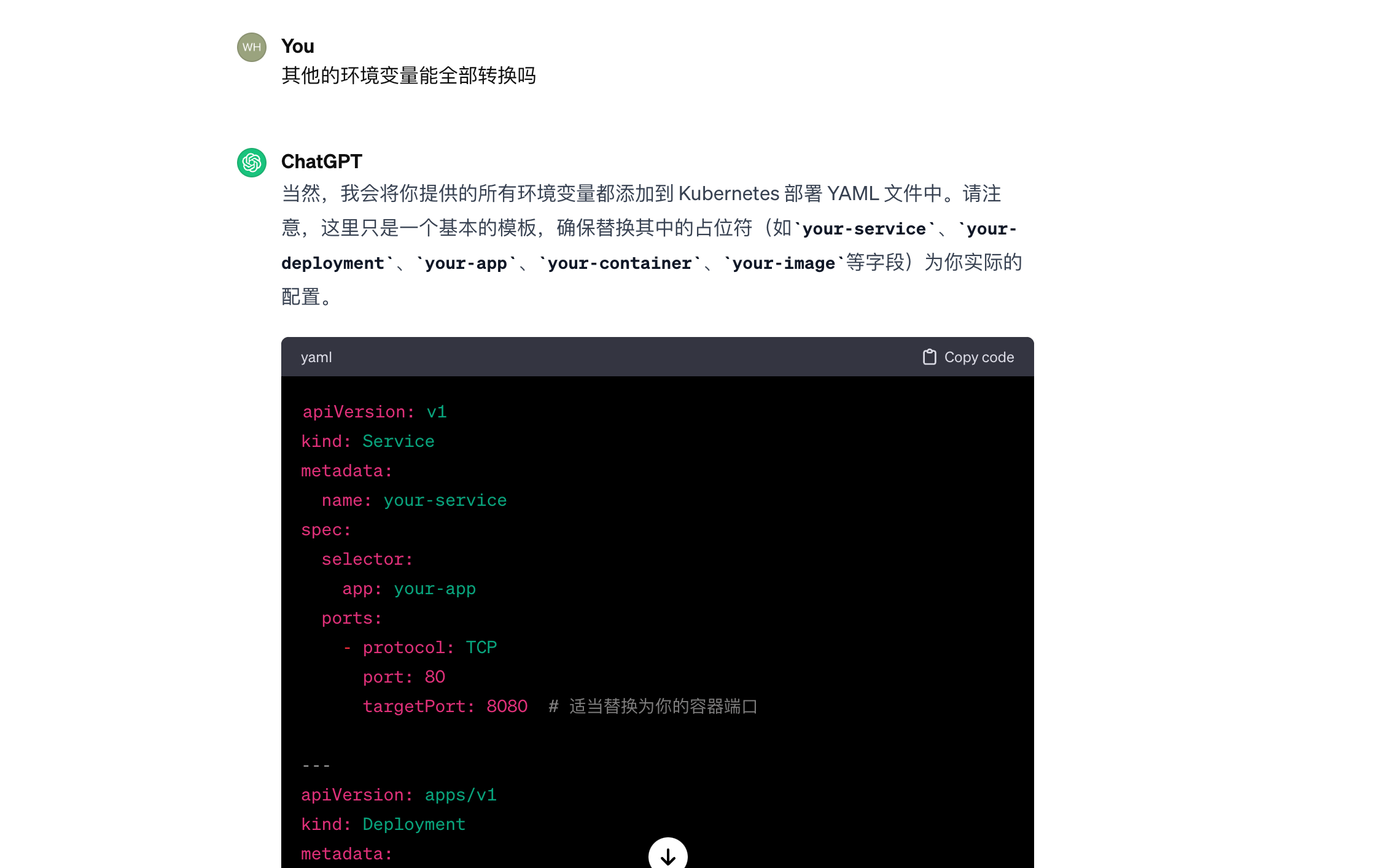

在经过多次询问之后，最终完整的将所有的environment转换成了env
最终生成了如下的yaml配置
apiVersion: v1
kind: Service
metadata:
name: your-service
spec:
selector:
app: your-app
ports:
- protocol: TCP
port: 80
targetPort: 8080 # 适当替换为你的容器端口
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: your-deployment
spec:
replicas: 1 # 根据需要的副本数进行调整
selector:
matchLabels:
app: your-app
template:
metadata:
labels:
app: your-app
spec:
containers:
- name: your-container
image: your-image
ports:
- containerPort: 8080 # 适当替换为你的容器端口
env:
- name: API_MAX_MODIFY_RECORD_COUNTS
value: "30"
- name: API_PROXY
value: "http://backend-server:8081"
- name: ASSETS_BUCKET
value: "assets"
- name: ASSETS_URL
value: "assets"
- name: AWS_ACCESS_KEY
value: "apitable"
- name: AWS_ACCESS_SECRET
value: "apitable@com"
- name: AWS_ENDPOINT
value: "http://minio:9000"
- name: AWS_REGION
value: "us-east-1"
- name: BACKEND_BASE_URL
value: "http://backend-server:8081/api/v1/"
- name: BACKEND_INFO_URL
value: "http://backend-server:8081/api/v1/client/info"
- name: CALLBACK_DOMAIN
value: ""
- name: CORS_ORIGINS
value: '*'
- name: DATA_PATH
value: "."
- name: DATABASE_TABLE_PREFIX
value: "apitable_"
- name: DATABUS_SERVER_BASE_URL
value: "http://databus-server:8625"
- name: DB_HOST
value: "mysql"
- name: DB_NAME
value: "apitable"
- name: DB_PASSWORD
value: "apitable@com"
- name: DB_PORT
value: "3306"
- name: DB_USERNAME
value: "root"
- name: ENABLE_SOCKET
value: "true"
- name: ENV
value: "apitable"
- name: HUAWEICLOUD_OBS_ACCESS_KEY
value: "apitable"
- name: HUAWEICLOUD_OBS_ENDPOINT
value: "obs.cn-south-1.myhuaweicloud.com"
- name: HUAWEICLOUD_OBS_SECRET_KEY
value: "apitable@com"
- name: IMAGE_BACKEND_SERVER
value: "apitable/backend-server:latest"
- name: IMAGE_DATABUS_SERVER
value: "apitable/databus-server:latest"
- name: IMAGE_GATEWAY
value: "apitable/openresty:latest"
- name: IMAGE_IMAGEPROXY_SERVER
value: "apitable/imageproxy-server:latest"
- name: IMAGE_INIT_APPDATA
value: "apitable/init-appdata:latest"
- name: IMAGE_INIT_DB
value: "apitable/init-db:latest"
- name: IMAGE_MINIO
value: "minio/minio:RELEASE.2023-01-25T00-19-54Z"
- name: IMAGE_MYSQL
value: "mysql:8.0.32"
- name: IMAGE_PULL_POLICY
value: "always"
- name: IMAGE_RABBITMQ
value: "rabbitmq:3.11.9-management"
- name: IMAGE_REDIS
value: "redis:7.0.8"
- name: IMAGE_REGISTRY
value: "docker.io"
- name: IMAGE_ROOM_SERVER
value: "apitable/room-server:latest"
- name: IMAGE_WEB_SERVER
value: "apitable/web-server:latest"
- name: INSTANCE_MAX_MEMORY
value: "4096M"
- name: MAIL_ENABLED
value: "false"
- name: MAIL_FROM
value: ""
- name: MAIL_HOST
value: ""
- name: MAIL_PASSWORD
value: ""
- name: MAIL_PORT
value: ""
- name: MAIL_SSL_ENABLE
value: "true"
- name: MAIL_TYPE
value: "smtp"
- name: MAIL_USERNAME
value: ""
- name: MINIO_ACCESS_KEY
value: "apitable"
- name: MINIO_SECRET_KEY
value: "apitable@com"
- name: MYSQL_DATABASE
value: "apitable"
- name: MYSQL_HOST
value: "mysql"
- name: MYSQL_PASSWORD
value: "apitable@com"
- name: MYSQL_PORT
value: "3306"
- name: MYSQL_ROOT_PASSWORD
value: "apitable@com"
- name: MYSQL_USERNAME
value: "root"
- name: NEST_GRPC_ADDRESS
value: "static://room-server:3334"
- name: NGINX_HTTP_PORT
value: "80"
- name: NGINX_HTTPS_PORT
value: "443"
- name: NODE_ENV
value: "apitable"
- name: NODE_OPTIONS
value: "--max-old-space-size=2048 --max-http-header-size=80000"
- name: OSS_BUCKET_NAME
value: "assets"
- name: OSS_CACHE_TYPE
value: "minio"
- name: OSS_CLIENT_TYPE
value: "aws"
- name: OSS_ENABLED
value: "true"
- name: OSS_HOST
value: "assets"
- name: OSS_TYPE
value: "QNY1"
- name: PUBLIC_URL
value: ""
- name: RABBITMQ_HOST
value: "rabbitmq"
- name: RABBITMQ_PASSWORD
value: "apitable@com"
- name: RABBITMQ_PORT
value: "5672"
- name: RABBITMQ_USERNAME
value: "apitable"
- name: RABBITMQ_VHOST
value: "/"
- name: REDIS_DB
value: "0"
- name: REDIS_HOST
value: "redis"
- name: REDIS_PASSWORD
value: "apitable@com"
- name: REDIS_PORT
value: "6379"
- name: ROOM_GRPC_URL
value: "room-server:3334"
- name: SERVER_DOMAIN
value: ""
- name: SKIP_REGISTER_VALIDATE
value: "true"
- name: SMS_ENABLED
value: "false"
- name: SOCKET_DOMAIN
value: "http://room-server:3333/socket"
- name: SOCKET_GRPC_URL
value: "room-server:3007"
- name: SOCKET_RECONNECTION_ATTEMPTS
value: "10"
- name: SOCKET_RECONNECTION_DELAY
value: "500"
- name: SOCKET_TIMEOUT
value: "5000"
- name: SOCKET_URL
value: "http://room-server:3002"
- name: TEMPLATE_PATH
value: "./static/web_build/index.html"
- name: TEMPLATE_SPACE
value: "spcNTxlv8Drra"
- name: TIMEZONE
value: "Asia/Singapore"
- name: TZ
value: "Asia/Singapore"
- name: USE_CUSTOM_PUBLIC_FILES
value: "true"
- name: USE_NATIVE_MODULE
value: "0"
有了基本的架子之后，就可以在当前的模板上进行更新修改了，按需调整配置项，最终实现了make dataenv和make run涉及的所有组件
在k8s deployment上部署的目标。
